Magnetic Levitation System

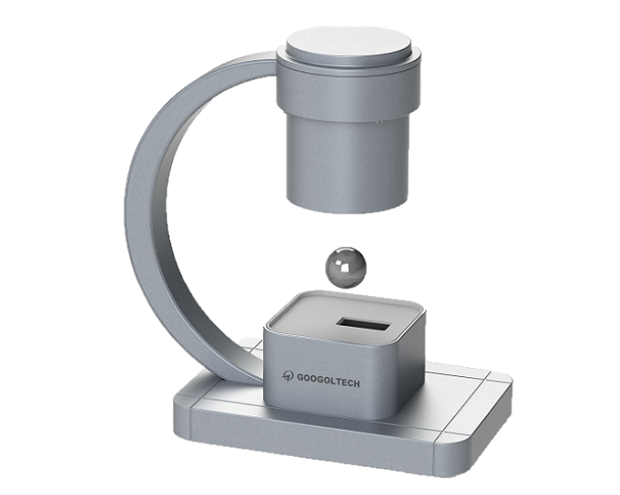

The Magnetic Levitation System (MLS) is composed of an LED light source, an electromagnet, an optoelectronic sensor, amplifier module, an analogue control module, data acquisition card, and a steel ball, etc. Its structure is simple, yet the control effect is very intuitional and interesting. One can easily levitate one or more steel balls in a steady-state position and keep them floating. This system synthesizes main experimental contents in control area and satisfies many experiment requirements such as automatic control, control theory, and feedback system, etc, which are suitable for UG or PG course designs and algorithm research as well.

Function

Description

Winding Resistance

13.8ohm

Control Precision

0.1mm

Winding Turns

2450

Winding Inductance

135mH

Winding Dimension

Diameter=20 mm , H=94mm

LED Light Source

+12V, 1W

Sampling Frequency (AD)

30KHz

Power Input

AC220V 50HZ 3A (AC110V Optional)

Control Range

1~20mm (m=22g , diameter =25mm)

1~15mm (steel ball m=120g , diameter =55mm)

Data Acquisition Card

-          16 double-ended analogue input channels, 2 single-ended analogue output channels.

-          16 digital input/output channels

-          12-bit A/D converter, sampling rate up to 100KHz

-          1K sampling FIFO buffer on-board

-          Each input channel gain programmable

-          Automatic channel /gain scan

-          Analogue sampling channel voltage range selectable (+10V , +5V , +2.5V , +1.25V , +0.625V)

Dimensions

350mm x 178mm x 376mm

Weight

<10Kg
