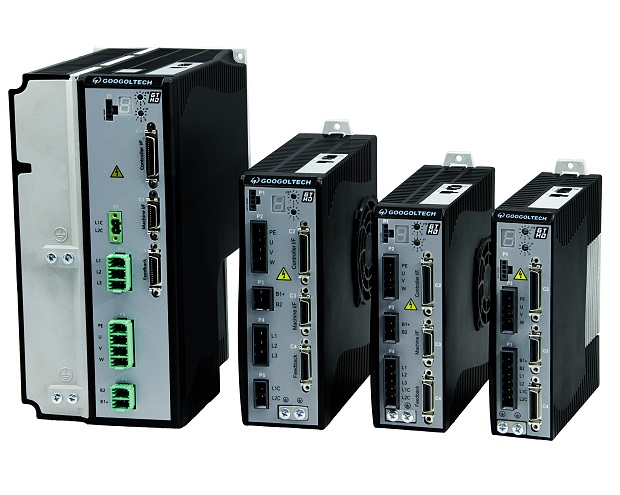

GTHD Servo Drive

The GTHD series high performance servo drive features hardware and software design innovations that deliver superior servo performance, industry-leading power density and extensive versatility. GTHD supports virtually any motor, any feedback type, and any I/O requirement. Product functionality covers most applications that servo control needs, offering seamless commissioning through ServoITE software or direct terminal access, with all–in-one tuning of current, velocity, and position control loops.

Function	Description
Supported motor	Rotary/ Linear/ DDR/ Brush or brushless
Encoder and protocol	Incremental encoder/ Absolute Encoder/ Resolver/ Sin wave encoder/ Cos wave encoder/EnDAT2.1&EnDAT 2.2
Control mode	Position/ Velocity/ Current
Pulse signal	Pulse + Direction/ ± Pulse
Maximum output frequency	50 kHz
Speed range	0 ~ 6000 rpm
Speed control accuracy	<± 0.2%
Speed fluctuation	<± 0.3%
Positioning accuracy	<± 1pulse
Current loop bandwidth	3000 Hz
Velocity loop bandwidth	600 Hz
Position loop bandwidth	100 Hz
Digital IO	11 Inputs / 6 Outputs
Analog IO	2 Inputs / 1 Output
Operating Temperature	-10 ~ +45℃
Humidity	5% ~ 95%
Communication bus supported	gLink/ RS232/ USB/ CanOpen/ EtheCat/ ProfiNet

Dimension

Model	Rating Voltage (VAC)	Dimension W x H x D (mm)
GTHD-003	120/240	43 x 173 x 143
GTHD-006	120/240	55 x 173 x 167
GTHD-013	120/240	62 x 194 x 182
GTHD-024	120/240	116 x 245 x 194
GTHD-003 & GTHD-006	400/480	110 x 172 x 193
GTHD-012-4DAP1	400/480	117 x 245 x 194

Model No.	Descriptions
GTHD-003-2AAP1	GTHD-003 Servo Drive: Continue Current/ Peak Current: 3A/ 9A (For 120/240 VAC) Continue Current/ Peak Current: 3A/ 9A (For 400/480 VAC) 2A Power Supply, Interface: Analog voltage, Pulse Train Ref, RS232 One Analog Input, 16 bits
GTHD-006-2AAP1	GTHD-006 Servo Drive: Continue Current/ Peak Current: 6A/ 18A (For 120/240 VAC) Continue Current/ Peak Current: 6A/ 18A (For 400/480 VAC) 2A Power Supply, Interface: Analog voltage, Pulse Train Ref, RS232 One Analog Input, 16 bits
GTHD-013-2AAP1	GTHD-013 Servo Drive: Continue Current/ Peak Current: 13A/ 28A (For 120/240 VAC) Continue Current/ Peak Current: 12A/ 24A (For 400/480 VAC) 2A Power Supply, Interface: Analog voltage, Pulse Train Ref, RS232 One Analog Input, 16 bits
GTHD-024-2AAP1	GTHD-024 Servo Drive: Continue Current/ Peak Current: 24A/ 48A (For 120/240 VAC) Continue Current/ Peak Current: 24A/ 48A (For 400/480 VAC) 2A Power Supply, Interface: Analog voltage, Pulse Train Ref, RS232 One Analog Input, 16 bits
GTHD-003-4DAP1	GTHD-003 Servo Drive: Continue Current/ Peak Current: 3A/ 9A (For 120/240 VAC) Continue Current/ Peak Current: 3A/ 9A (For 400/480 VAC) 4D Power Supply, Interface: Analog voltage, Pulse Train Ref, RS232 One Analog Input, 16 bits
GTHD-006-4DAP1	GTHD-006 Servo Drive: Continue Current/ Peak Current: 6A/ 18A (For 120/240 VAC) Continue Current/ Peak Current: 6A/ 18A (For 400/480 VAC) 4D Power Supply, Interface: Analog voltage, Pulse Train Ref, RS232 One Analog Input, 16 bits
GTHD-003-2AAF1	GTHD-003 Servo Drive: Continue Current/ Peak Current: 3A/ 9A (For 120/240 VAC) Continue Current/ Peak Current: 3A/ 9A (For 400/480 VAC) 2A Power Supply, Interface: Analog voltage, Pulse Train Ref, CANopen, USB, RS232 One Analog Input, 16 bits
GTHD-006-2AAF1	GTHD-006 Servo Drive: Continue Current/ Peak Current: 6A/ 18A (For 120/240 VAC) Continue Current/ Peak Current: 6A/ 18A (For 400/480 VAC) 2A Power Supply, Interface: Analog voltage, Pulse Train Ref, CANopen, USB, RS232 One Analog Input, 16 bits
GTHD-013-2AAF1	GTHD-013 Servo Drive: Continue Current/ Peak Current: 13A/ 28A (For 120/240 VAC) Continue Current/ Peak Current: 12A/ 24A (For 400/480 VAC) 2A Power Supply, Interface: Analog voltage, Pulse Train Ref, CANopen, USB, RS232 One Analog Input, 16 bits
GTHD-024-2AAF1	GTHD-024 Servo Drive: Continue Current/ Peak Current: 24A/ 48A (For 120/240 VAC) Continue Current/ Peak Current: 24A/ 48A (For 400/480 VAC) 2A Power Supply, Interface: Analog voltage, Pulse Train Ref, CANopen, USB, RS232 One Analog Input, 16 bits
GTHD-003-4DAF1	GTHD-003 Servo Drive: Continue Current/ Peak Current: 3A/ 9A (For 120/240 VAC) Continue Current/ Peak Current: 3A/ 9A (For 400/480 VAC) 4D Power Supply, Interface: Analog voltage, Pulse Train Ref, CANopen, USB, RS232 One Analog Input, 16 bits
GTHD-006-4DAF1	GTHD-006 Servo Drive: Continue Current/ Peak Current: 6A/ 18A (For 120/240 VAC) Continue Current/ Peak Current: 6A/ 18A (For 400/480 VAC) 4D Power Supply, Interface: Analog voltage, Pulse Train Ref, CANopen, USB, RS232 One Analog Input, 16 bits
GTHD-003-2AEC2	GTHD-003 Servo Drive: Continue Current/ Peak Current: 3A/ 9A (For 120/240 VAC) Continue Current/ Peak Current: 3A/ 9A (For 400/480 VAC) 2A Power Supply, Interface: Analog voltage, Pulse Train Ref, EtherCAT, USB, RS232 Two Analog Input, 14 bits each
GTHD-006-2AEC2	GTHD-006 Servo Drive: Continue Current/ Peak Current: 6A/ 18A (For 120/240 VAC) Continue Current/ Peak Current: 6A/ 18A (For 400/480 VAC) 2A Power Supply, Interface: Analog voltage, Pulse Train Ref, EtherCAT, USB, RS232 Two Analog Input, 14 bits each
GTHD-013-2AEC2	GTHD-013 Servo Drive: Continue Current/ Peak Current: 13A/ 28A (For 120/240 VAC) Continue Current/ Peak Current: 12A/ 24A (For 400/480 VAC) 2A Power Supply, Interface: Analog voltage, Pulse Train Ref, EtherCAT, USB, RS232 Two Analog Input, 14 bits each
GTHD-024-2AEC2	GTHD-024 Servo Drive: Continue Current/ Peak Current: 24A/ 48A (For 120/240 VAC) Continue Current/ Peak Current: 24A/ 48A (For 400/480 VAC) 2A Power Supply, Interface: Analog voltage, Pulse Train Ref, EtherCAT, USB, RS232 Two Analog Input, 14 bits each

Related Products

GTHD Servo Drive for Linear Motor

The GTHD series high performance servo drive features hardware an...

More

GTDD Servo Drive

Incorporating two independent servo drives, this revolutionary produc...

More

GSK Series Servo Motor

GSK series AC servo motor with independent intellectual property ...

More

<

>
