Gibbon Robot Calibration System

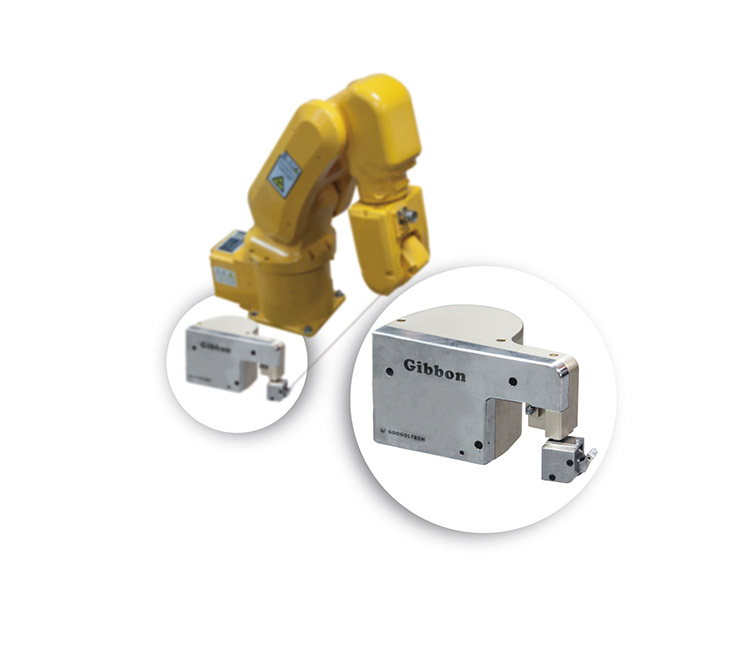

Gibbon Robot Quick Calibration System consists of dedicated measuring sensor and calibration software. It amends the parameters of robot’s joint zero position, arm length, tool center point by simple and quick data collection process, increasing the absolute precision of robot effectively when working.

Gibbon Robot Calibration System is mainly applied in scenarios like robot welding, cutting, engraving, visual tracking and gripping, which needs higher absolute positioning precision and trajectory precision.

Function	Description
CPU	ARM Cortex-M4
Rated Power	AC100-240V
Maximum Current	0.75A
Resolution	0.001mm
Accuracy	0.1mm
Measuring Range	Spherical space with a radius of 3m
OS Support	Windows7、Windows8、Linux
Operating temperature	25±10℃
Relative humidity	5%-90%, non-condensing
Storage humidity	10%-95%, non-condensing
Vibration	Sinusoidal vibration: GB/T 2423.10 Random vibration: GB/T 2423.56
Shock	Mechanical shock: GB/T 2423.5 Impact: GB/T 2423.6
Drop	1.5 meters drop test
Certification	Industry standard level 3 (ESD: 6KV; EFT: Power Cable 2KV, Signal Cable 1KV)
Dimension	287 x 160 x 78mm
Installation	Horizontal mounting
Weight	2kg
IP protection	IP30
