Fieldbus Connectors

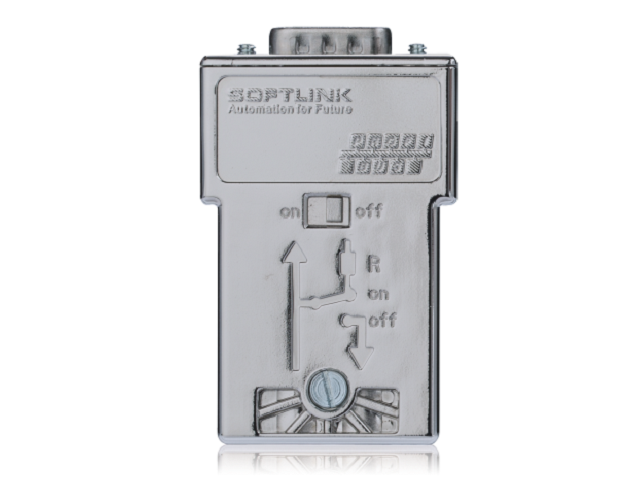

iMetal series of Fieldbus connectors offer an extensive range of connection modes and qualifications for fieldbus components. The metal-shielded connectors have a strong immunity to high-frequency interference and guarantee a smooth communication in any harsh industrial environment. Self-diagnostic Fieldbus connectors have LED indicators to show status of the network and the Fieldbus connectors.

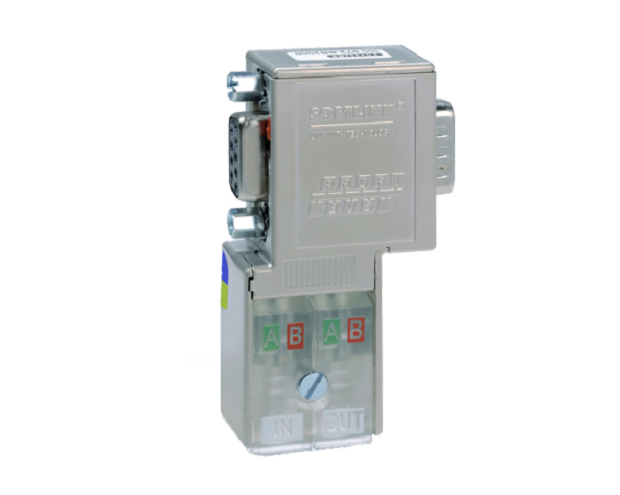

Googoltech's iMetal Fieldbus connectors offer three outlet modes: 35°,90°, and 180°. And the 90°metal-shielded Fieldbus connector adopts quick-connect technology, which could save time and make installation efficiency substantially. With transparent caps, it is more convenient to check the connection.

Function		Description
Interface	Industrial Ethernet FC standard interface	4 integrated insulation piercing contacts
	Industrial Ethernet RJ45 interface	One RJ45 interface
	Baud rate	100MBit/S
Extension	TP Cable Length	0-100M
Temperature	Working Temperature	-20℃-70℃
	Transport/ Storage Temperature	-40℃-80℃
	Relative Humidity	<95%
Design	Dimensions	13.6 × 16 × 53.6 mm
	Weight	40g
	Degree of Protection	IP20

Model No.	Descriptions
300 972-BA1000	35° outlet, without programming port
300 972-BB1000	35° outlet, with programming port
300 972-BA1200	90°outlet, without programming port
300 972-BB1200	90°outlet, with programming port
300 972-BA2000	90° outlet, without programming port, fast-wiring
300 972-BB2000	90° outlet, with programming port, fast-wiring
300 972-BA3000	180° outlet, without programming port
300 972-BA4100	35° outlet, without all metal
300 972-BB4100	35° outlet, with all metal
300 972-BA4200	90° outlet, without programming port, all metal
300 972-BB4200	90° outlet, with programming port, all metal
300 972-BA5000	90° outlet, without programming port, optical isolation
300 972-BA6000	Self-diagnosis 90° outlet, without programming port
300 972-BB6000	Self-diagnosis 90° outlet, with programming port
300 972-BA6100	Self-diagnosis 90° outlet, without programming port, all metal
300 972-BB6100	Self-diagnosis 90° outlet, with programming port, all metal
300 972-BA8000	Multi-Angle, without programming port
300 972-BB8000	Multi-Angle, with programming port
300 901-1BB10	180°Field-bus connector
300 901-1BG10	90°Field-bus connector
300 972-CA01	90°Outlet
