XYZ Stage

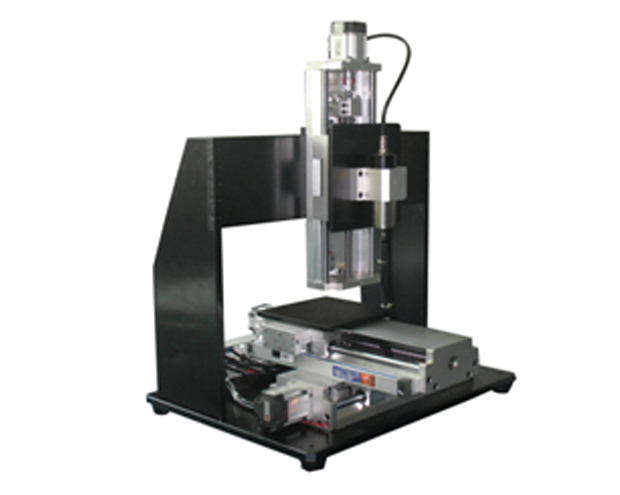

XYZ stage, together with single axis linear module and XY table belongs to Googol's NC series products. They are the basic components of CNC processing, electronic machining equipment, as well as the general platform for different scientific research, application developing and educational experiment. The XYZ stage series is designed with modularization and industrial manufacturing standard, suitable for manufacturing fields and colleges. The accompanying software is developed based on object-oriented technology. 3 axes motion control system main functions and G code compiling DLL are all included, which will realize different single-axis motor motion modes (S curve, T curve, speed mode, electronic gear mode) control, 2/3-axis interpolation or synchronizing controls. In addition, it provides abundant graphical interface, which displays curves of the motor parameters (speed, acceleration, position) in real time. Moreover, it displays real-time platform simulation and actual motion trajectory. Users can choose different experiment modules according to different experiments need, and this greatly facilitates their educational experiments and research work.

Function	Description
Setting accuracy	0.05
Resetting accuracy	+ 0.03
Stepper motor	Step angle：1.8 degree Holding torque：1.35NM Rated current：2.5A Motor weight：1Kg
Stepper driver	Maximum 200 subdivided Maximum response frequency 200Kpps Opto-isolated input / output Driving current 0.5-4A adjustable Input power: DC12－40V
AC servo motor	Power：200W Type：AC servo Encoder：2500P/R Input voltage：92V Input current：1.6A Rated torque：0.64NM Maximum angular speed：3000 rpm
Servo driver	Power：200W Type：AC servo Input voltage： AC 200－230V Input current：1.1A Input voltage frequency：50/60HZ Output voltage：92V Output current：1.6A Output frequency：0-333.3HZ
Motion controller	GT-400-SG or GT-400-SV motion controller
Track	Effective distance：200 or 300mm
Ball screw	Distance：5mm
Dimensions	630 x 470 x 815mm
Weight	~ 100Kg

Model No.	Descriptions
GXYZ202010GT	3-axix stepping platform: AXYZ-MB-221-S mechanical main body, GT-400-SG motion controller AXYZ-EB-221-S 3-axis stepping electric control module Googol motion control platform software（source code included）
GXYZ303010GT	3-axix stepping platform: AXYZ-MB-331-S mechanical main body, GT-400-SG motion controller AXYZ-EB-331-S 3-axis stepping electric control module Googol motion control platform software（source code included）
GXYZ202010VP	3-axis AC servo closed-loop platform: AXYZ-MB-221-P mechanical main body, GT-400-SV motion controller AXYZ-EB-221-P-C 3-axis AC servo closed-loop electric control module Googol motion control platform software（source code included）
GXYZ303010VP	3-axis AC servo closed-loop platform: AXYZ-MB-331-P mechanical main body, GT-400-SV motion controller AXYZ-EB-331-P-C 3-axis AC servo closed-loop electric control module Googol motion control platform software（source code included）
GXYZ202010GP	3-axis AC servo open-loop platform: AXYZ-MB-221-P mechanical main body, GT-400-SG motion controller AXYZ-EB-221-P-O 3-axis AC servo open-loop electric control module Googol motion control platform software（source code included）
GXYZ303010GP	3-axis AC servo open-loop platform: AXYZ-MB-331-P mechanical main body, GT-400-SG motion controller AXYZ-EB-331-P-O 3-axis AC servo open-loop electric control module Googol motion control platform software（source code included）
GXYZ202010VD	3-axis DC servo closed-loop platform: AXYZ-MB-221-D mechanical main body, GT-400-SV motion controller AXYZ-EB-221-D-C 3-axis DC servo closed-loop electric control module Googol motion control platform software（source code included）
GXYZ303010VD	3-axis DC servo closed-loop platform: AXYZ-MB-331-D mechanical main body, GT-400-SV motion controller AXYZ-EB-331-D-C 3-axis DC servo closed-loop electric control module Googol motion control platform software（source code included）
GXYZ202010GD	3-axis DC servo open-loop platform: AXYZ-MB-221-D mechanical main body, GT-400-SG motion controller AXYZ-EB-221-D-O 3-axis DC servo open-loop electric control module Googol motion control platform software（source code included）
GXYZ303010GD	3-axis DC servo open-loop platform: AXYZ-MB-331-D mechanical main body, GT-400-SG motion controller AXYZ-EB-331-D-O 3-axis DC servo open-loop electric control module Googol motion control platform software（source code included）
