IDEABOX Plus series Compact PAC

Home > Products > iDEABOX Plus Intelligent Controller

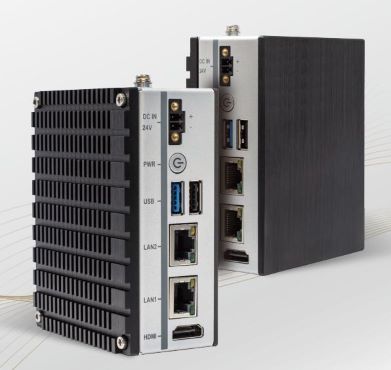

IDEABOX Plus series Compact PAC

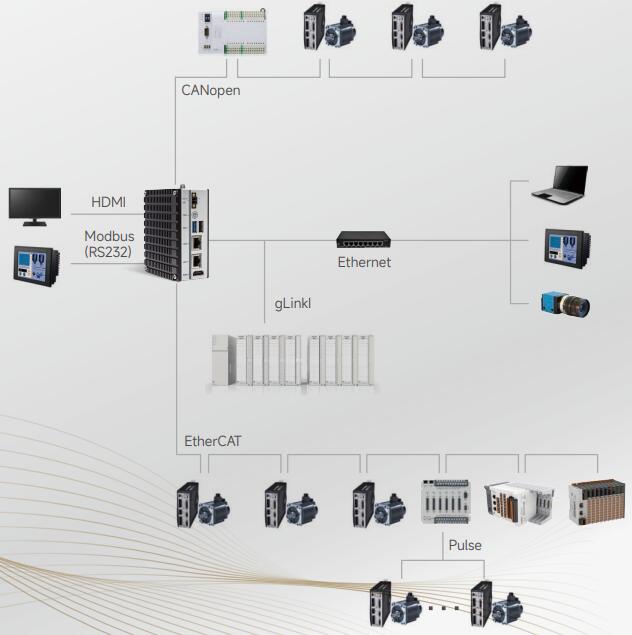

The IDEABOX Plus series controller integrates the CPU, fieldbus, and industrial internet communication into a compact intelligent main control unit. It uses an X86 quad-core processor that supports multi-core real-time control and has built in communication protocols such as EtherCAT，EtherNet-IP，Modbus RTU/TCP，and OPC UA.

The IDEABOX Plus series controller is based on the IEC61131-3 programming standard and supports PLCopen Motion Control Part1 and Part2. It can support custom process modules and is expandable with wireless interfaces, including WIFI 802.11 and 4G LTE. Its compact, fanless design makes it easy to install and suitable for use in harsh conditions

Specifications

Powerful Motion Control Capability

  • Synchronous motion control up to 64 axes；
  • Minimum cycle time 250us；
  • Support multi-axis interpolation motion, point-to-point motion, Jog motion, Gear/CAM motion

Human Machine Interaction
  • Support HDMI Interface

Easy to Adjust
  • The development platform fully supports IEC61131-3 standard based OtoStudio V3 programming environment.
  • Support remote diagnostic services
