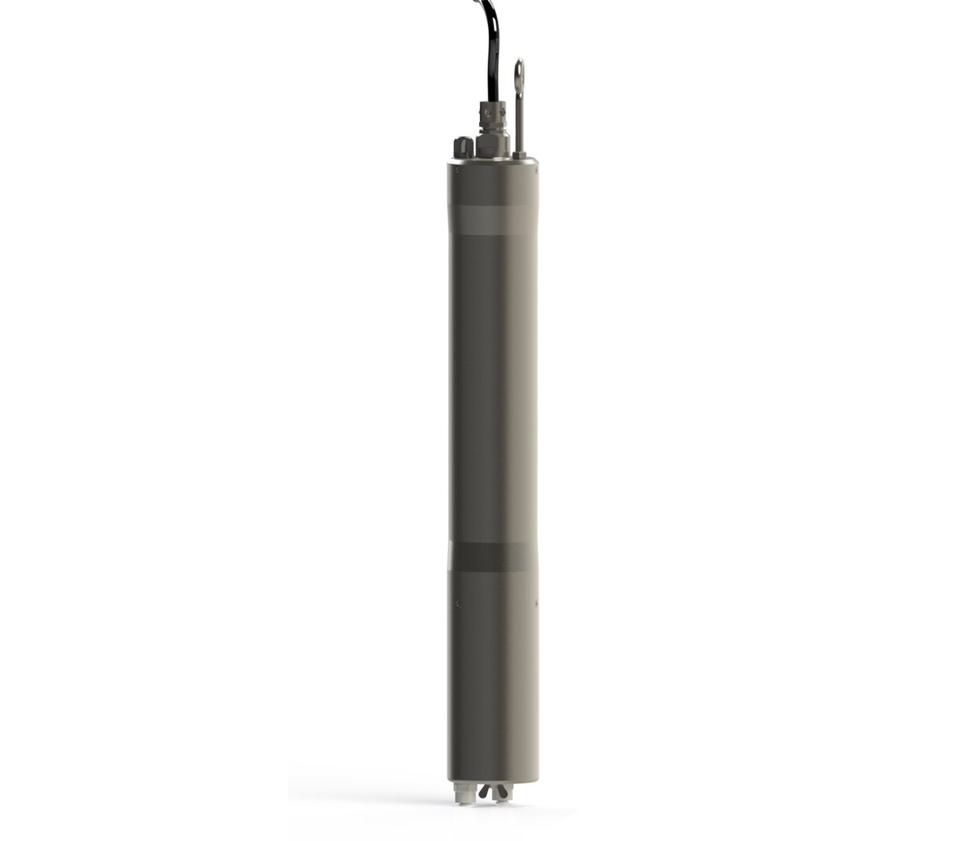

Full Spectrum Water Sensor-WQS-F-C

The full spectrum sensor adopts the measurement principle of UV-Vis absorption spectroscopy to monitor the "light pattern" (fingerprint) information in the wavelength range of 200-800 nm online in real time, and realize multi-parameter measurement through AI algorithm, including: O₃, COD, TOC, DOC, BOD, TUR, TSS, nitrate, chroma, etc. WQS-F-C series full-spectrum adopts configurable measuring range design, with the measuring range of 4mm-150mm that can be set continuously. It supports automatic window cleaning, and can be applied to a variety of water body water quality measurement, supports in-situ installation, flow-through installation.

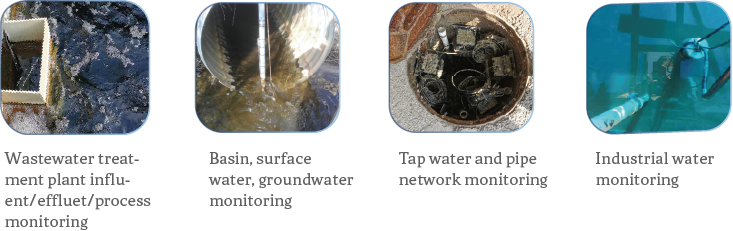

It is mainly used for real-time online monitoring of water quality in waterworks, water distribution network and secondary water supply, as well as for online monitoring of surface water and groundwater quality.

Principle	Ultraviolet-visible (200 nm~800 nm)	Power	<8 W
Dimension	φ66x 513.5 mm	Material	AISI 316L
Power requirements	DC+12 V ~ +24 V	Cleaning method	Cleaning brush
Measurement period	10 seconds to 65535 seconds	IP rating	IP68
Operating temperature	0 to 50 °C	Sample flow rate	<3 m/s
Pressure	6 bar	Communication	RS485(Modbus RTU), WiFi, Bluetooth

Customer feedback

*is required information

Parameter	Gap	Range	Resolution	Accuracy
COD	80 mm (Typical)	0-15 mg/L	0.01 mg/L	±0.5 mg/L
COD	4 mm (Min)	0-500 mg/L	0.01 mg/L	±3% or ±2.5 mg/L
TUR	80 mm (Typical)	0-15 NTU	0.01 NTU	±1 NTU
TUR	4 mm (Min)	0-500 NTU	0.01 NTU	±5% or ±10 NTU
NO₃-N	80 mm (Typical)	0-0.5 mg/L	0.01 mg/L	±0.05 mg/L
NO₃-N	4 mm (Min)	0-25 mg/L	0.01 mg/L	±3% or ±0.2 mg/L
O₃	100 mm (Typical)	0-0.5 mg/L	0.001 mg/L	±5% F.S.
O₃	4 mm (Min)	0-15 mg/L	0.01 mg/L	±5% F.S.
